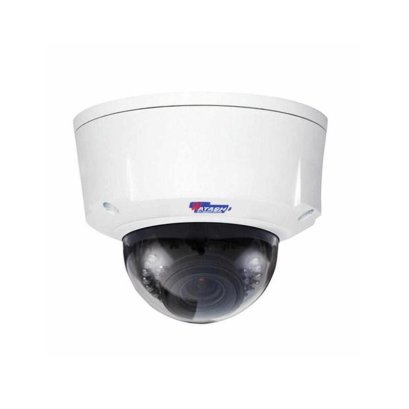

WIP040
คุณสมบัติสินค้า:
1/3" 3 Megapixel progressive scan CMOS, Support H.264/MJPEG dual codec, 25/30fps@3MP(2048x1536), Smart Detection supported, WDR(Wide Dynamic Range),Day/Night IR Filter/Auto (ICR),3DNR,AWB,AGC,BLC, Ultra Defog, ROI, EIS, Smart IR technology, Multiple network monitoring: Web viewer, CMS(DSS/ SmartPSS/PSS) & DMSS, Max. IR LEDs length 30m, 3~9mm varifocal motorized lens, Micro SD, Max 64GB, DC12V, PoE
หมวดหมู่ : IP CAMERA WATASHI , IP 3 MP ,
Share
- 1/3" 3 Megapixel progressive scan CMOS
- Support H.264/MJPEG dual codec
- 25/30fps@3MP(2048x1536)
- Smart Detection supported
- WDR(Wide Dynamic Range),Day/Night IR Filter/Auto (ICR),3DNR,AWB,AGC,BLC
- Ultra Defog, ROI, EIS
- Smart IR technology
- Multiple network monitoring: Web viewer, CMS(DSS/ SmartPSS/PSS) & DMSS
- Max. IR LEDs length 30m
- 3~9mm varifocal motorized lens
- Micro SD, Max 64GB
- DC12V, PoE
SPECIFICATION
| Camera | |
| Image Sensor | 1/3” 3Megapixel CMOS |
| Effective Pixels | 2048(H)x1536(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual,1/3~1/10000s |
| Min. Illumination | 0.01Lux/F1.4( Color), 0Lux/F1.4(IR on) |
| S/N Ratio | More than 50dB |
| Video Output | 1 port |
| Camera Features | |
| Max. IR LEDs Length | 30m |
| Day/Night | IR Filter / Auto (ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR120dB |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Privacy Masking | Up to 4 areas |
| Lens | |
| Focal Length | 3 -9mm motorized |
| Max Aperture | F1.4 |
| Focus Control | Auto |
| Angle of View | H: 86.5°(Wide)~28.6°(Tele) |
| Lens Type | Motorized /Auto Iris(DC) |
| Mount Type e | Board-in Typ |
| Video | |
| Compression | H.264 / MJPEG |
| Resolution | 3M(2048x1536)1080P(1920× 1080)/720P(1280× 720)/ |
| D1(704× 576/704× 480)/CIF(352× 288 /352× 240) | |
| Frame Rate | Main Stream 3M/1080P (1 ~ 25/30fps) |
| Sub Stream D1/CIF(1 ~ 25/30fps) | |
| Third Stream 1080P/720P/D1(1 ~ 25/30fps) | |
| Bit Rate | H.264: 48K ~ 8192Kbps |
| Audio | |
| Compression | G.711a / G.711u/ PCM |
| Interface | 1/1 channel In/Out |
| Smart Function | |
| Smart Detection | Tripwire/ Intrusion/Scene change/ Missing/Abandoned/ |
| Audio detect/ Face detect | |
| Motion Detector | Auto/Manual |
| Network | |
| Ethernet | RJ-45 (10/100/1000Base-T) |
| Wi-Fi | N/A |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, |
| RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Psia CGI |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface | |
| Memory Slot | Micro SD, Max 64GB |
| Alarm | 1/1 channel In/Out |
| General | |
| Power Supply | DC12V (AC24V Optional), PoE(802.3af) |
| Power Consumption | >14.5W |
| Working Environment | -30°C~+60°C, Less than 95% RH |
| Vandal Resistance | IP66 |
| Dimensions | 273.3mm × 94.8mm × 94.8mm |
| Weight | 1.3Kg |
